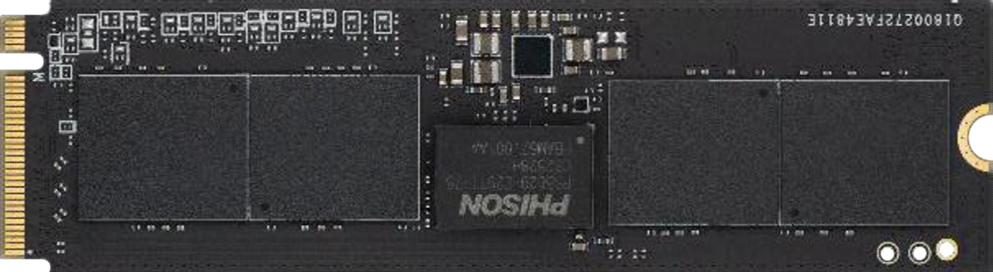

M2P-80DP
NVMe PCIe Gen4 x4
-
The device is designed based on the M.2 2280 standard. It offers up to 4TB.
-
Performance can reach up to 7,300MB/s read as well as 6,600MB/s write high performance based on 218Layers 3D TLC NAND flash.
Download Files
Product Specifications
| Series Name | M2P-80DP | ||||
|---|---|---|---|---|---|
| Interface | NVMe PCIe Gen4 x4 | ||||
| Capacity Coverage | 80GB up to 4TB | ||||
| Capacity | |||||
| 3D TLC | 256GB up to 4TB | ||||
| 3D pSLC | 80GB up to 1,280GB | ||||
| Performance Overview | Seq. R : 7300 MB/s ; Seq. W : 6600 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 7300 MB/s ; Seq. W : 6600 MB/s | ||||
| 3D pSLC | Seq. R : 7300 MB/s ; Seq. W : 6600 MB/s | ||||
| Standard Operating Temperature | 0°C ~ 70°C | ||||
| Extended Operating Temperature | -40°C ~ 85°C | ||||
| Dimension LxWxH (mm) | 80mm(L) x 22mm(W) x 2.15mm(H) | ||||
| Technology | # # OPAL | ||||
| Data Sheet |  |
||||
