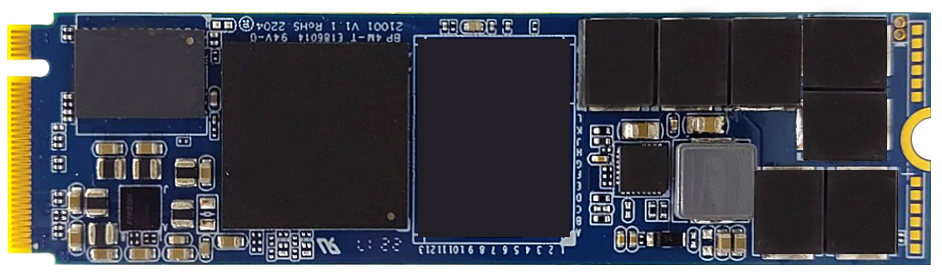

M2P-80DC

Arrow Down Icon
80DC

NVMe PCIe Gen3 x4

  • Checkmark Icon The M.2 2280 could provide a wide range capacity up to 1920GB
  • Checkmark Icon Its performance can reach up to 3,300MB/s read and 1,000MB/s write.

Download Files

Product Specifications

Series Name M2P-80DC
Interface NVMe PCIe Gen3 x4
Capacity Coverage 240GB up to 1920GB
Capacity
3D TLC 240GB up to 1920GB
Performance Overview Seq. R : 3300 MB/s ; Seq. W : 1000 MB/s
Performance
3D TLC Seq. R : 3300 MB/s ; Seq. W : 1000 MB/s
Standard Operating Temperature 0°C ~ 70°C
Extended Operating Temperature -40°C ~ 85°C
Dimension LxWxH (mm) Type1: Dimension: 80mm(L) x 22mm(W) x 3.5mm(H) for Non-PLP PCBA
Type2: Dimension: 80mm(L) x 22mm(W) x 4.5mm(H) for PLP PCBA
Technology # # OPAL   # #Thermal throttling   # #Write Protect   # #Secure Erase
