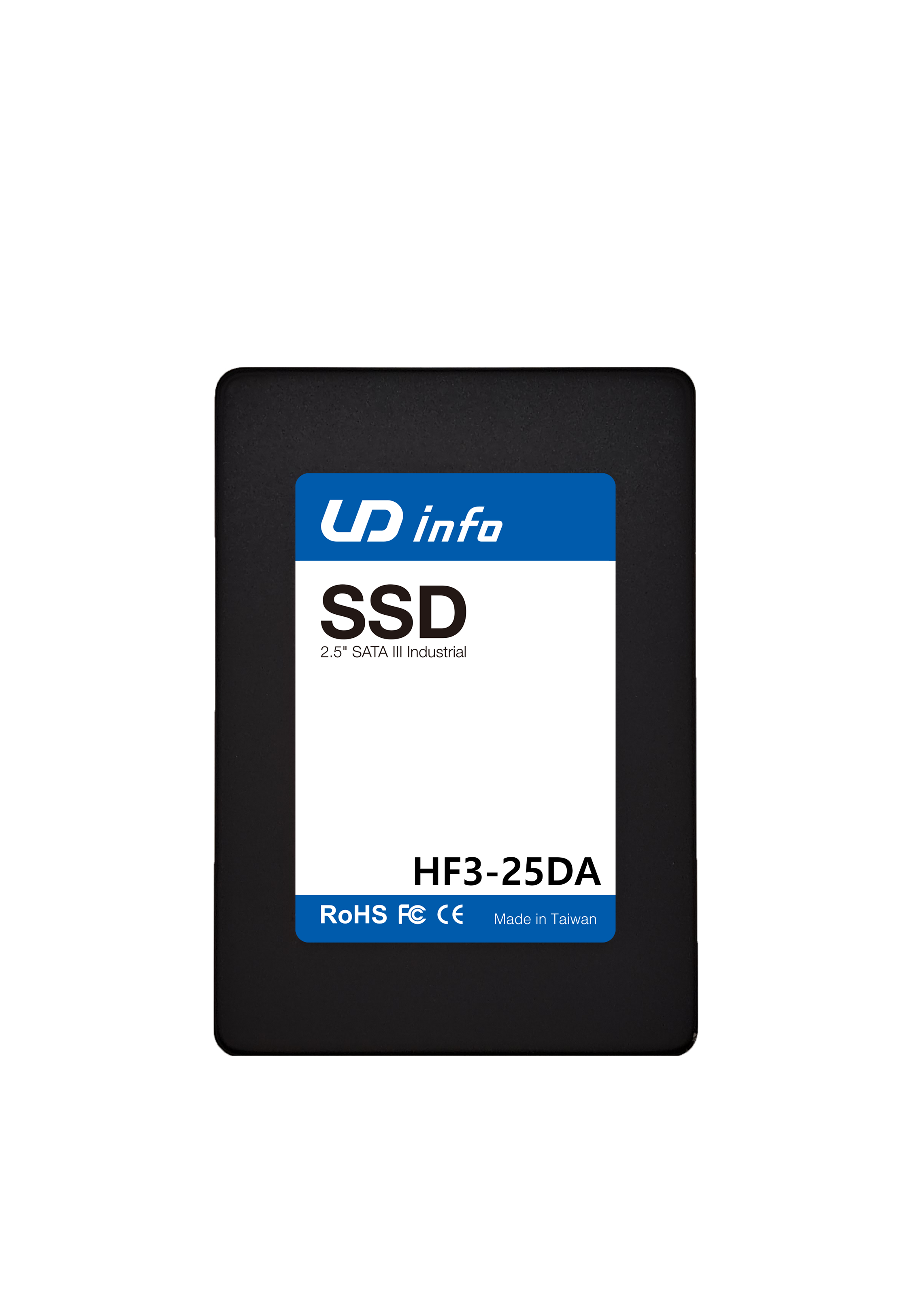

HF3-25DA
SATA Revision 3.1
-
Being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive.
-
Based on the standard 7-pin interface for data segment and 15-pin for power segment.
-
Its capacity could provide a wide range up to 2TB.
-
Reach up to 550MB/s read as well as 530MB/s write high performance based on 3D TLC NAND flash.
-
FIPS 140-2 Level 2 certified: Certificate number #3940
Download Files
Product Specifications
| Series Name | HF3-25DA | ||||
|---|---|---|---|---|---|
| Interface | SATA Revision 3.1 | ||||
| Capacity Coverage | 128GB~4TB | ||||
| Capacity | |||||
| 3D TLC | 128GB~4TB | ||||
| Performance Overview | Seq. R : 550 MB/s ; Seq. W : 530 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 550 MB/s ; Seq. W : 530 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | 100mm(L) x 69.85mm(W) x 7.00mm(H) | ||||
| Technology | #S.M.A.R.T #Thermal Throttling #OPAL #FIPS | ||||
| Data Sheet |  |
||||
